Model No.: JK6
Brand: FAW
Old And New: New
Gearbox Type: Manual
Emission Standards: Euro 2, Euro 3, Euro 5
Fuel: Diesel
Place Of Origin: China
| Category | Specification |
| Model Name | |

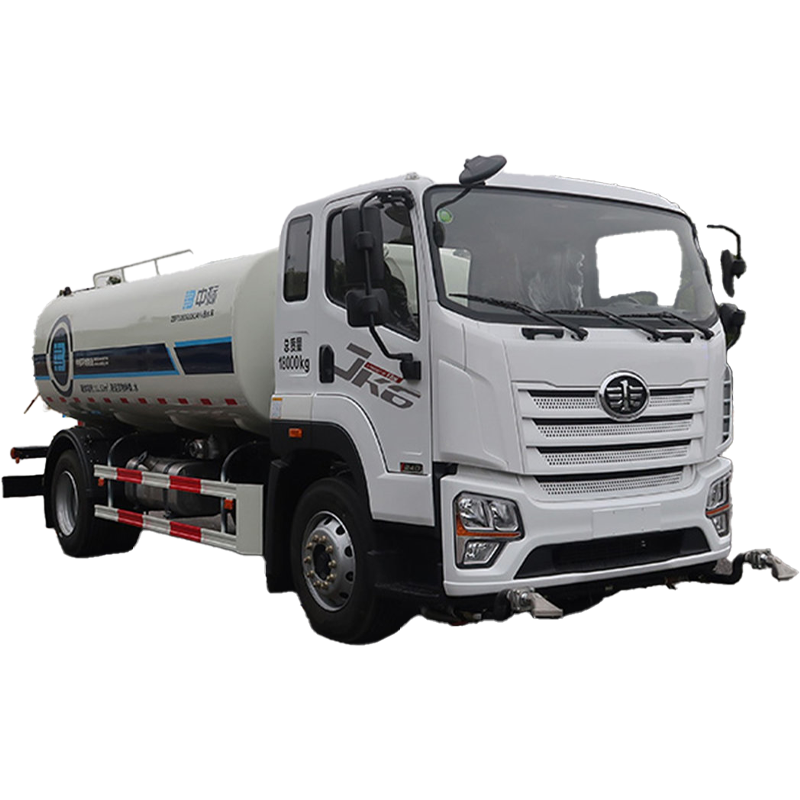

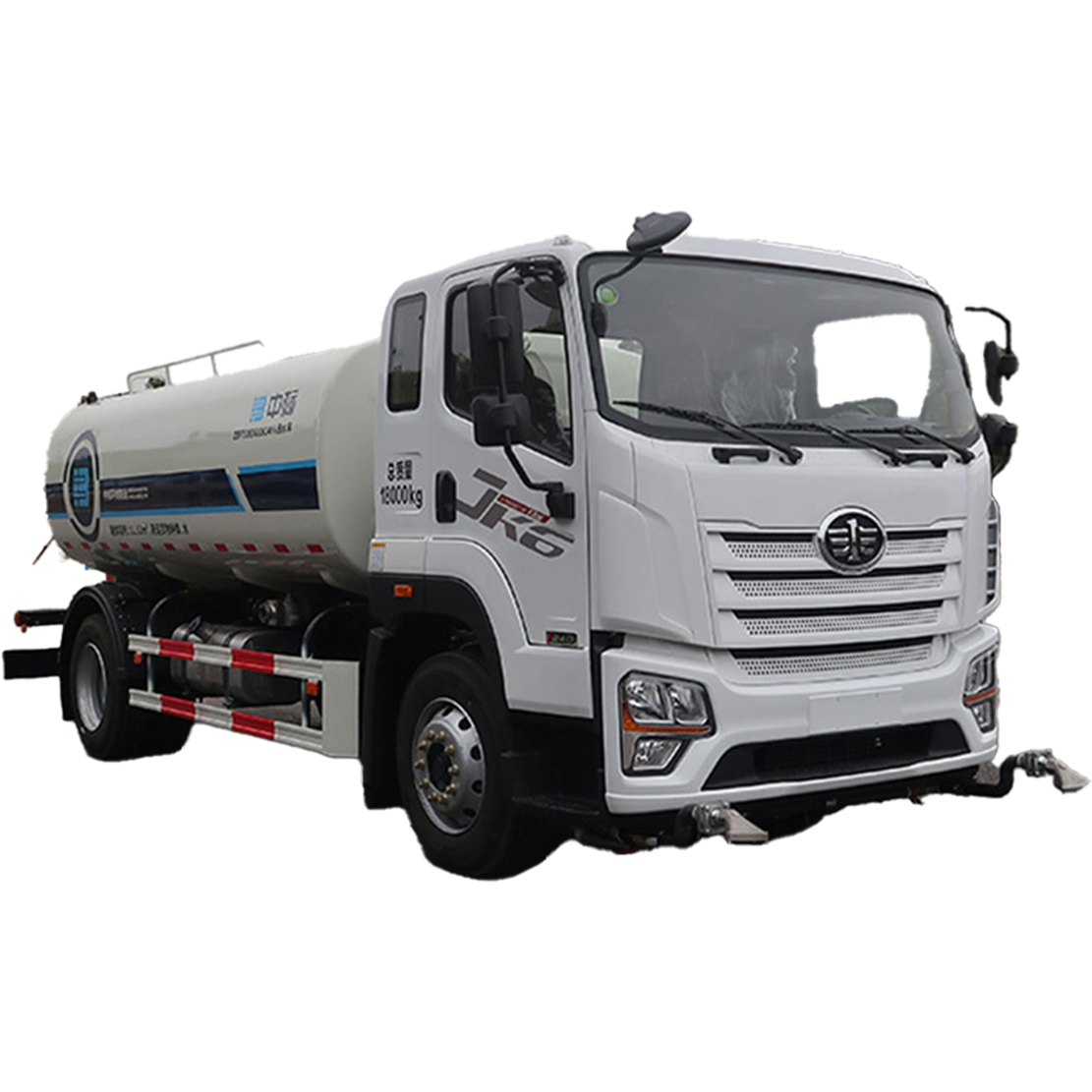

| Vehicle Type | Light-to-medium-duty water sprinkler Truck |
| Primary Application | Road flushing, landscaping irrigation, urban dust suppression |
| Platform | Based on JK6 Cargo chassis (4×2 / 6×2) with rear-mounted water tank body |
| Drive Configuration | 4×2 (standard) / 6×2 (high-capacity optional) |
| Engine Options | Weichai WP4.6 / WP6 |
| Power Output | 180–260 HP |
| Torque | Up to 1000 Nm |
| Transmission | FAST 8-speed / 9-speed manual |
| Fuel Type | Diesel (China VI B compliant) |
| Suspension | Front: Multi-leaf spring |
| Steering System | Hydraulic power steering |
| Water Tank Capacity | 8,000 – 12,000 Liters (depending on chassis & wheelbase) |
| Tank Material | Carbon steel with anti-corrosion inner coating (optional stainless steel) |
| Pump Brand | Domestic brand (e.g. Hangzhou Weilong, Tianjin Tongjie) |
| Sprinkler Configuration | Front duckbill nozzles, rear circular nozzles, left/right side spray |
| Water Cannon | High-pressure roof cannon (adjustable jet: 20–30 m range) |
| Control Options | In-cab electric controls + external manual controls |
| Water Inlet/Outlet | 2" or 3" hose interface with filter, quick-connect type |
| Other Functions | Self-suction (5m lift), fire hydrant connection port, optional fog cannon |
| Cab Type | Mid-roof wide cab / High-roof sleeper cab (optional) |
| Interior Comfort | Cloth seats, A/C, electric windows, LED lighting |
| Dashboard | LCD + analog hybrid cluster with pump status indicators |
| Optional Features | Bluetooth radio, USB charging, reversing camera |
Safety & Auxiliary Features
| Standard Safety | ABS, dual-circuit air brake, anti-slip step ladder |
| Optional Equipment | Reverse radar, LED work lights, rear-view camera, water-level display |
| Lighting System | Emergency flashers, rear reflectors, fog lights |
| Chassis Protection | Bottom tank shield, anti-overflow valve, rear protection bar |
| GVW (Gross Vehicle Weight) | 12 – 18 tons (based on configuration) |
| Curb Weight | 7,500 – 10,000 kg |
| Top Speed | 80–90 km/h (limited) |
| Sprinkler Width | 12–16 meters adjustable |
| Pump Flow Rate | 60–90 m³/hour (depending on system spec) |
| Sector | Example Use |
| Municipal sanitation | Daily road flushing, dust control |
| Landscaping & parks | Tree irrigation, green belt watering |
| Construction sites | Dust suppression on large infrastructure projects |
| Emergency response | Road washing after chemical or oil spills |
· ✅ Modular Tank System: Compatible with multiple tank sizes and pump setups
· ✅ Dual Control Design: Easy operation from inside cabin or outside panel
· ✅ Strong Chassis: Based on JK6 cargo platform, proven durability & low maintenance
· ✅ Green Operation: Optional fog cannon/nozzle system for PM2.5 dust suppression
· ✅ Customizable Exterior: Available in white/green/blue with logo & reflective tape
Product Categories : Special Truck > JK6 Watering Truck
